Terminal Board

The pocket A/D terminal board provides the standard voltage divider circuit for pocket A/D only, it supports 11 channels terminal loop, and user can design voltage divider circuit by himself.

The maximum input voltage for each channel is 0 to 5V DC or 0 to 10V DC.0

1. Terminal Board

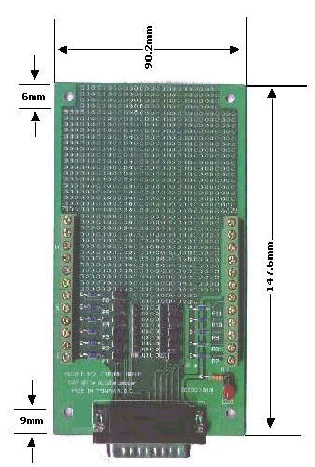

The figure of pocket A/D terminal board is shown on the following page
